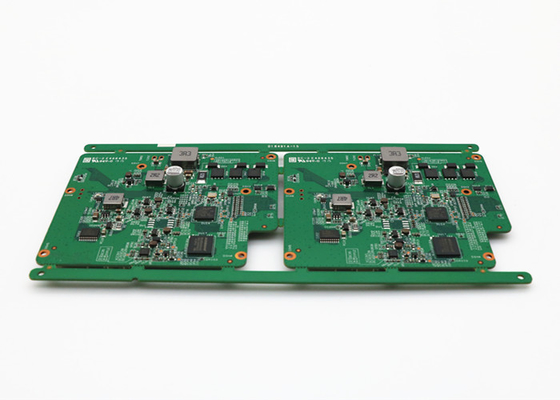

Printed Circuit Board Assembly Lead Free Surface Mount pcba board white Silk Screen

Features

1. One Stop OEM Service: Made in Shenzhen of China
2. Manufactured by Gerber File and Bom LIst Offered by Customers
3. SMT, DIP Technology Support
4. FR4 Material Meet 94v0 Standard
5. UL,CE,ROHS Compliant
6. Standard Lead Time: 4-5days for 2L;5-7 for 4L. Expedited Service is available.

Detailed Specification

What KAZ Circuit can do for you:

• PCB manufacturing (prototype, small to medium, mass production)
• Components Sourcing
• PCB Assembly/SMT/DIP

To get a full quotation of the PCB/PCBA, pls provide the information as below:

• Gerber File, with detail specification of the PCB
• BOM List (Better with excel fomart)
• Photoes of the PCBA (If you have done this PCBA before)

Company Informaiton:

KAZ Circuit is a professional PCB manufacturer from China since 2007, also provide PCB Assembly service for our customers. Now with about 300 employees. Certified with ISO9001,TS16949, UL, RoHS. We are confident to provide you quality products with factory-directed price within the fastest delivery time!

Manufacturer Capacity:

Customized PCB assembly process

PCB Design and Fabrication:

Collaborate with PCB design engineers to create schematics and layouts for custom PCBs.

Complete PCB design, including component placement, trace routing, and any special requirements.

Send design files to PCB manufacturer for fabrication.

Receive the bare PCB from the manufacturer and check for any defects.

Component purchasing:

Determine the required electronic components such as ICs, resistors, capacitors, and connectors.

Purchase necessary components from an authorized distributor or direct from the manufacturer.

Ensure components are compatible with the PCB design and meet the specifications of the project.

PCB Assembly:

Prepare the PCB for assembly by cleaning the surface and applying solder paste to component pads.

Use automated pick and place machines to place components accurately on the PCB.

Reflowing the solder paste in a controlled environment, such as a reflow oven, creates component connections.

Perform visual and electrical inspection of assembled PCBs to ensure proper component placement and solder joints.

Dedicated assembly process (if necessary):

Depending on the PCB design and application, additional assembly processes may be required, such as:

Through-hole component insertion and soldering

Ball Grid Array (BGA) or Chip Scale Package (CSP) component connections

Conformal coating or potting for environmental protection

Heat sink or thermal management component installation

Testing and Quality Assurance:

Perform various tests to verify functionality and reliability of custom PCBs such as:

Electrical testing (e.g. continuity, resistance, voltage and current measurements)

Functional testing to ensure PCB meets design specifications

Environmental testing (e.g. temperature, humidity, vibration) (if necessary)

Document test results and any problems encountered during assembly.

Final assembly and packaging:

Integrate custom PCB into final product or system (if applicable).

Pack PCBs or complete assemblies for safe shipping and delivery to customers.

Provide any necessary documentation such as assembly instructions, schematics, and test reports.

Throughout the custom PCB assembly process, manufacturers should maintain strict quality control procedures, adhere to industry standards, and ensure traceability of all components and processes.
