Description Of PCB Assembly
Service

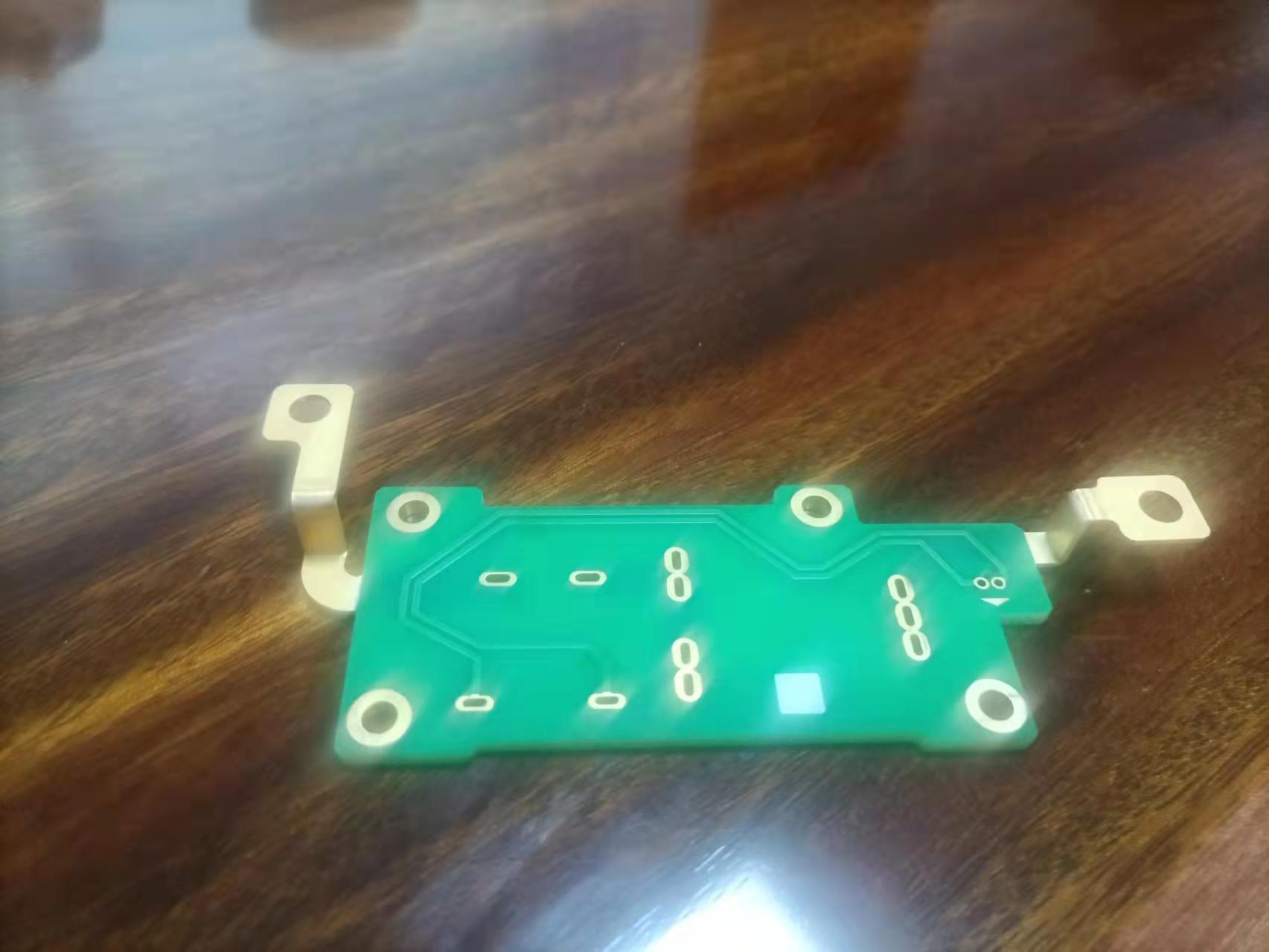

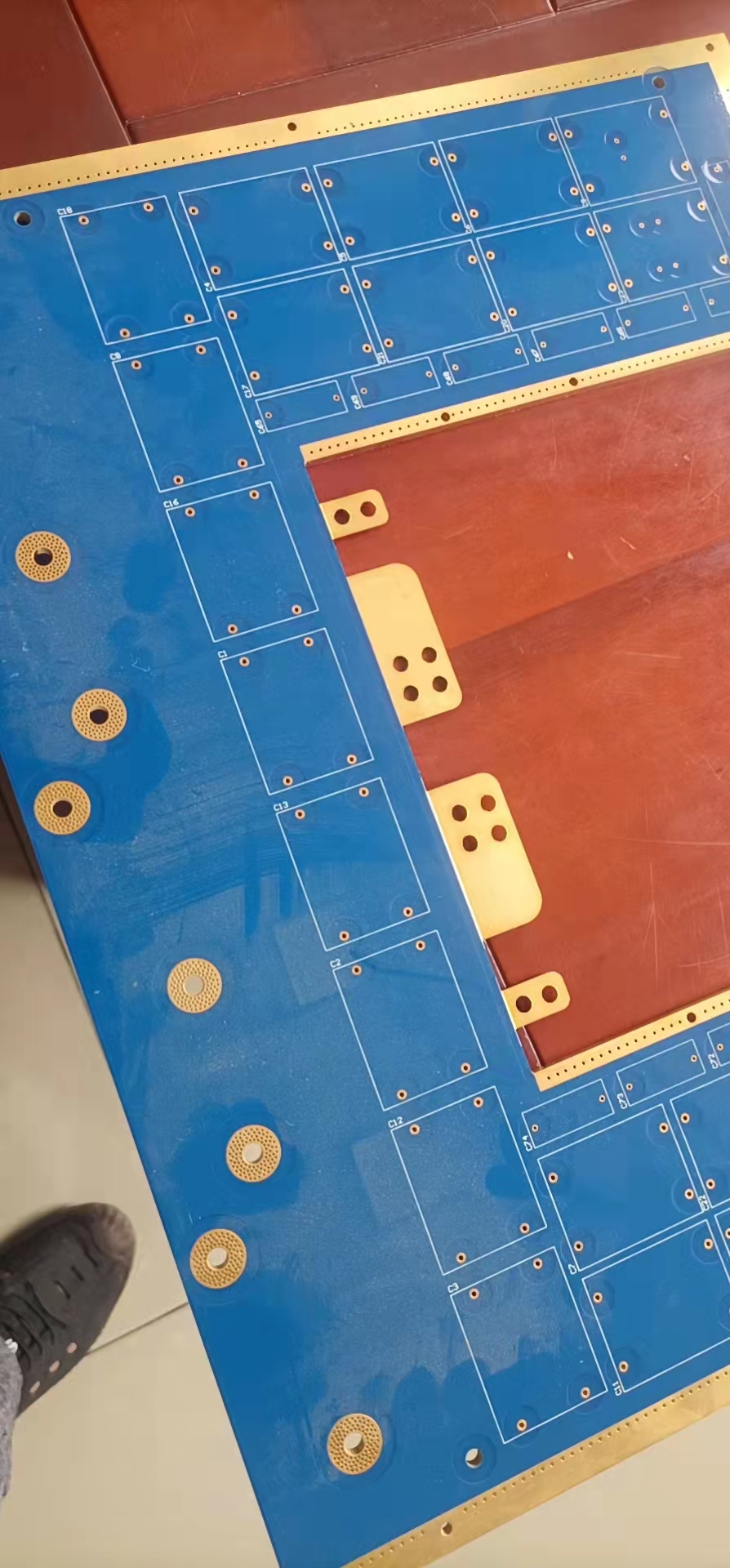

This board is 6 layer high TG FR4 Embedded copper block printed
circuit board.
As the volume of electronic components becomes smaller and smaller,
the size of pcb circuit board (PCB) keeps getting smaller and
smaller, and the route design schemes become more and more
centralized. Because of the power increase of electronic devices,
the heating capacity of PCB is too large, which affects the service
life, aging and even invalidity of electronic devices.
Specification Of PCB Assembly
Service
| 1 | Layer | 1-30 layer |
| 2 | Material | FR-4, High TG, FR4 Halogen Free, |
| 3 | Board thickness | 0.2mm-7mm |
| 4 | Max.finished board side | 510mm*1200mm |
| 5 | Min.drilled hole size | 0.25mm |
| 6 | Min.line width | 0.075mm(3mil) |
| 7 | Min.line spaceing | 0.075mm(3mil) |
| 8 | Surface finish/treatment | HALS/HALS lead free, Chemical tin, Chemical Gold, Immersion gold
Inmersion Silver/Gold, Osp, Gold Plating |
| 9 | Copper thickness | 0.5-4.0oz |
| 10 | Solder mask color | green/black/white/red/blue/yellow |
| 11 | Inner packing | Vacuum packing, Plastic bag |
| 12 | Outer packing | Standard carton packing |
| 13 | Hole tolerance | PTH:±0.076, NTPH:±0.05 |
| 14 | Certificate | UL, ISO9001, ISO14001, ROHS, CQC |
| 15 | Profiling Punching | Routing, V-CUT, Beveling |
| 16 | Assembly Service | Providing OEM service to all sorts of printed circuit board
assembly |
PCB Assembly(SMT) Product Capacity
| SMT Capacity |
| SMT Item | Capacity |
| PCB Max. size | 510mm*1200mm(SMT) |
| Chip component | 0201, 0402, 0603, 0805, 1206 package |
| Min.pin space of IC | 0.1mm |
| Min. space of BGA | 0.1mm |
| Max.precision of IC assembly | ±0.01mm |
| Assembly capacity | ≥8 million piots/day |
| SMT capacity | 7 SMT production lines |
| DIP capacity | 2 DIP production lines |
| Assembly testing | Bridge test,AOI test, X-Ray test, ICT(In Circuit
Test),FCT(Functional Circuit Test) |
FCT(Functional Circuit Test) | Current test, voltage test, high temperature and low temperature
test,Drop Impact Test,aging test,water proof test,leakage-proof
test and etc.Different test can be done according to your
requirement. |
Products Application:
1, Telecom Communication
2, Consumer Electronics
3, Security monitor
4, Vehicle Electronices
5, Smart Home
6, Industrial controls
7, Military & Defense
8, Automotive
9, Industrial Automation
10, Medical Devices
11, New Energy
And so on
Advantage Of PCB Assembly
Service
• Strict product liability, taking IPC-A-160 standard
• Engineering pretreatment before production
• Production process control (5Ms)
• 100% E-test, 100% visual inspection, including IQC, IPQC, FQC,
OQC
• 100% AOI inspection, including X-ray, 3D microscope and ICT
• High-voltage test, impedance control test
• Micro section, soldering capacity, thermal stress test, shocking
test
OEM/ODM/EMS Services For PCBA:
· PCBA, PCB Board assembly: SMT & PTH & BGA
· PCBA and enclosure design
· Components sourcing and purchasing
· Quick prototyping
· Plastic injection molding
· Metal sheet stamping
· Final assembly
· Test: AOI, In-Circuit Test (ICT), Functional Test (FCT)
· Custom clearance for material importing and product exporting
Now we have been a factory which can provide one-stop service,
from the PCB production, the components purchasing to the
components assemble.
With more than 15 years of experience in PCB manufacturing and PCB
assembly, KAZ Circuit provides flexible manufacturing options that
adapt to cost targets, delivery requirements and fluctuating
demands in volume.
