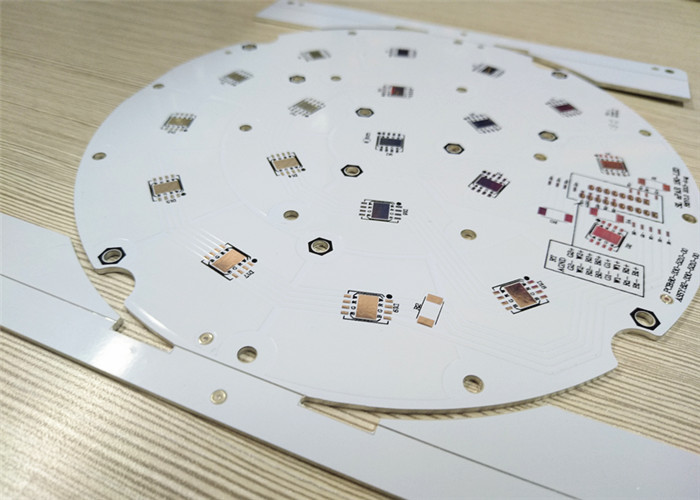

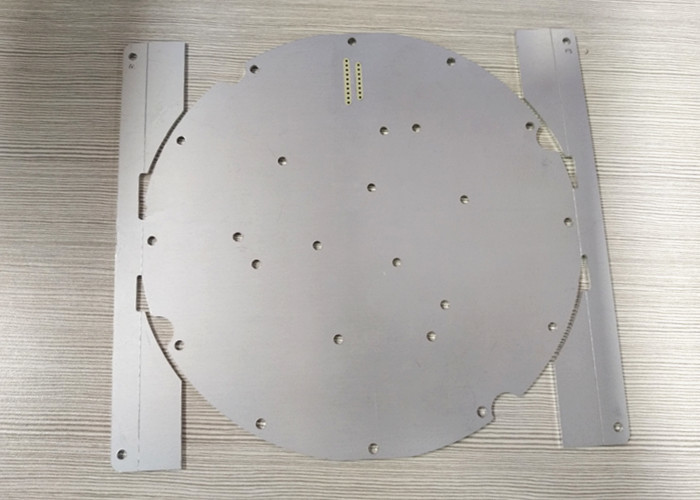

Aluminum Led Lead Free Quick Turn 1 Layer 1 OZ Printed Circuit Board,pcb board,AL Material Supports

Specifications

1. Material: Aluminum
2. Layer: 1 L
3. Copper Thickness: 1 OZ
4. Soldmask: White
5. Silkscreen: Black
6. Board Thickness: 1.6mm

Features

1. One Stop OEM Service: Made in Shenzhen of China
2. Manufactured by Gerber File and Bom LIst Offered by Customers
3. SMT, DIP Technology Support
4. AL Material Meet 94v0 Standard
5. UL,CE,ROHS Compliant
6. Standard Lead Time: 4-5days for 2L;5-7 for 4L. Expedited Service is available

What KAZ Circuit can do for you:

• PCB manufacturing (prototype, small to medium, mass production)
• Components Sourcing
• PCB Assembly/SMT/DIP

To get a full quotation of the PCB/PCBA, pls provide the information as below:

• Gerber File, with detail specification of the PCB
• BOM List (Better with excel fomart)
• Photoes of the PCBA (If you have done this PCBA before)

Company Informaiton:

KAZ Circuit is a professional PCB manufacturer from China since 2007, also provide PCB Assembly service for our customers. Now with about 300 employees. Certified with ISO9001,TS16949, UL, RoHS. We are confident to provide you quality products with factory-directed price within the fastest delivery time!

Manufacturer Capacity:

LED PCB Board Creation Process Information

Circuit Design

Determine the power requirements of the complete LED circuit, including maximum current and voltage

Consider using a microcontroller or driver IC for controlling LED brightness and effects

Integrate any necessary power conditioning or protection circuitry

PCB layout

Arrange components to minimize trace length and optimize thermal dissipation

Leave sufficient clearance between high-voltage/high-current traces and low-voltage/low-current traces

Plan for mounting holes, mounting hardware, and any mechanical integration

Design

Use proper trace width and spacing to handle expected current loading

Includes copper pours or planes for grounding and distribution

Add test points to facilitate troubleshooting and measurement

Consider adding screen marks to identify components

Preparation for manufacturing

Detailed assembly instructions provided, including component placement and orientation

Specify any special manufacturing requirements such as HASL, ENIG or Immersion Silver finishes

Includes precise BOM with part number, quantity and source

Manufacturing

And PCB Manufacturers work together closely to ensure accurate manufacturing and quality control

Discuss advanced feature options such as multi-layer boards, blind/buried vias or impedance control

Assembling and testing

Follow the assembly instructions carefully to avoid any problems during the soldering process

Perform comprehensive testing, including functional verification, current/voltage measurements and thermal analysis

Consider programming a microcontroller or driver IC to achieve advanced LED control and effects

End product

Integrate LED PCB boards into end products such as lighting fixtures, displays or other applications

Design and fabricate any necessary mechanical housings, heat sinks or mounting hardware

Complete product documentation including user manuals, installation guides and warranty information
