White Soldermask Aluminium ENIG / HASL Surface Durable PCB Printed Circuit Board

Introduction of White Soldermask Aluminium ENIG / HASL Surface Durable PCB Board

Brief introduction about Shenzhen KAZ Circuit Co,. Ltd.

Brief introduction

As a PCB and PCBA custom-made producer, KAZ Circuit Co., Ltd manufactures high precision single, double-sided, multilayer printed circuit board and metal substrate circuit board.

We manufacture pcb produsts depending on what you need and the gerber files you offered.

The services we offer:

The customers we establish business relationship with:

LED PCB Board Creation Process Information

Circuit Design

Determine the power requirements of the complete LED circuit, including maximum current and voltage

Consider using a microcontroller or driver IC for controlling LED brightness and effects

Integrate any necessary power conditioning or protection circuitry

PCB layout

Arrange components to minimize trace length and optimize thermal dissipation

Leave sufficient clearance between high-voltage/high-current traces and low-voltage/low-current traces

Plan for mounting holes, mounting hardware, and any mechanical integration

Design

Use proper trace width and spacing to handle expected current loading

Includes copper pours or planes for grounding and distribution

Add test points to facilitate troubleshooting and measurement

Consider adding screen marks to identify components

Preparation for manufacturing

Detailed assembly instructions provided, including component placement and orientation

Specify any special manufacturing requirements such as HASL, ENIG or Immersion Silver finishes

Includes precise BOM with part number, quantity and source

Manufacturing

and PCB Manufacturers work together closely to ensure accurate manufacturing and quality control

Discuss advanced feature options such as multi-layer boards, blind/buried vias or impedance control

Assembling and testing

Follow the assembly instructions carefully to avoid any problems during the soldering process

Perform comprehensive testing, including functional verification, current/voltage measurements and thermal analysis

Consider programming a microcontroller or driver IC to achieve advanced LED control and effects

End product

Integrate LED PCB boards into end products such as lighting fixtures, displays or other applications

Design and fabricate any necessary mechanical housings, heat sinks or mounting hardware

Complete product documentation including user manuals, installation guides and warranty information

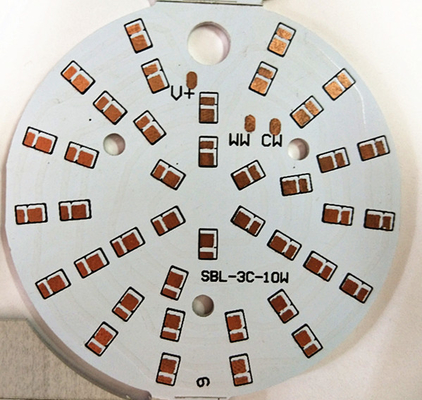

More pictures of White Soldermask Aluminium LED Light PCB Board with ENIG / HASL Surface

May I know if there is any project requiring pcb or pcba products?

In the year of 2024, SHENZHEN KAIZUO ELECTRONIC TECHNOLOGY CO., LTD (KAZ CIRCUIT) has joined Kingsum group (www.kingsumpcba.com), to seek for a larger market share from PCB manufacturing, component sourcing, pcb assembly, and box build assembly with better price and lead time.

Founded in 2007, KaiZuo Electronic (hereinafter referred to as KAZ) is a professional & high quality provider of Electronic Manufacturer Service (EMS) from China. With about 300 experienced employees, KAZ can provide customers with one stop services including PCB manufacturing, Components Sourcing, PCB Assembly, Cable Assembly, Box Building, IC Programming, Functional and Aging Testing. Certified with ISO9001, UL, RoHS, TS16949.

Equipped with 5 high-speed SMT, automatic printing machine (DSP1008), MIRAE MX200/MIRAE MX400 high-speed production line, YAMAHA equipment (YS24/YG12F...), reflow soldering (NS-1000), AOI testing equipment (JTA-320-M), X-Ray inspection equipment (Nikon AX7200), 2 DIP production lines and Nitto wave soldering.

After focusing on the electronic manufacturer services for 13+ years, KAZ has established long-term cooperated & satisfied customers all over the world. Mainly from North America, European, Asia and Australia. Application fields including industrial control, IT/Networking, IoT, security, automotive, power electronics, consumer electronics, lighting, etc.
