What is double sided PCB?

The double sided PCB is a printed circuit board which is coated with copper on both sides of the top layer and the bottom layer, and both sides can be soldered with a layer of insulating layer in the middle, which is a commonly used printed circuit board. Both sides can be routed, which greatly reduces the difficulty of wiring, and is therefore widely used.

Detail Specifications for this double sided FR4 PCB with blue soldmask HASL Lead Free 10 pcs panelization

KAZ provide the service as below:

• PCB manufacturing
• components sourcing
• PCB Assembly: SMT/DIP services

In order to get a full quotation of the PCB/PCBA, pls provide below information:

• Gerber, with detail specification of the PCB
• BOM List with excel fomart
• Photoes of the PCBA (if you have done this project before, if not, just ignore this)

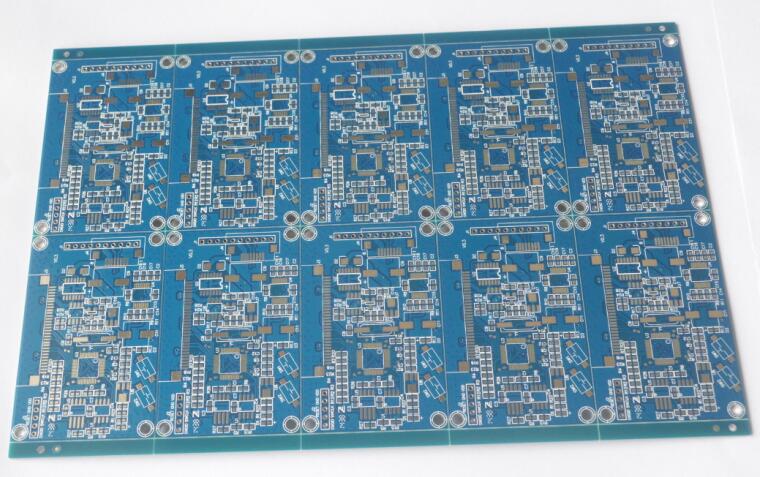

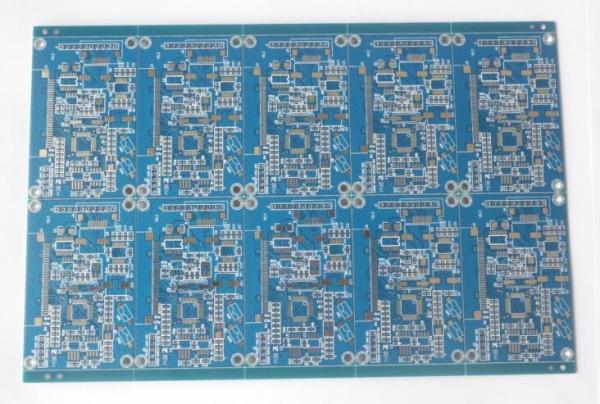

To see more detail photoes for this double sided FR4 PCB with blue soldmask HASL Lead Free 10 pcs panelization, pls refer to below:

In the year of 2024, SHENZHEN KAIZUO ELECTRONIC TECHNOLOGY CO., LTD (KAZ CIRCUIT) has joined Kingsum group (www.kingsumpcba.com), to seek for a larger market share from PCB manufacturing, component sourcing, pcb assembly, and box build assembly with better price and lead time.

Founded in 2007, KaiZuo Electronic (hereinafter referred to as KAZ) is a professional & high quality provider of Electronic Manufacturer Service (EMS) from China. With about 300 experienced employees, KAZ can provide customers with one stop services including PCB manufacturing, Components Sourcing, PCB Assembly, Cable Assembly, Box Building, IC Programming, Functional and Aging Testing. Certified with ISO9001, UL, RoHS, TS16949.

Equipped with 5 high-speed SMT, automatic printing machine (DSP1008), MIRAE MX200/MIRAE MX400 high-speed production line, YAMAHA equipment (YS24/YG12F...), reflow soldering (NS-1000), AOI testing equipment (JTA-320-M), X-Ray inspection equipment (Nikon AX7200), 2 DIP production lines and Nitto wave soldering.

After focusing on the electronic manufacturer services for 13+ years, KAZ has established long-term cooperated & satisfied customers all over the world. Mainly from North America, European, Asia and Australia. Application fields including industrial control, IT/Networking, IoT, security, automotive, power electronics, consumer electronics, lighting, etc.

Some of KAZ Customers:

Certificates including:

• ISO9001
• TS16949
• UL
• RoHS
