This is 4 Layers FR4 PCB Circuit Board Green Soldmask With Blind Via

PCB size: 204*176mm / 2UP, IPC Class 2 quality standard.

Order Processing:

Inquiry with gerber
quote as per gerber file
Customers agreed with the price
Customers send the PO
PI provided for payment information
Payment arranged
Engineering Process, EQ-Engineering Question confirmed (if there is EQ) before production
production arranged
Shipping Arranged
Shipping status tracking
CUstomers Feedbacks
Repeat Order

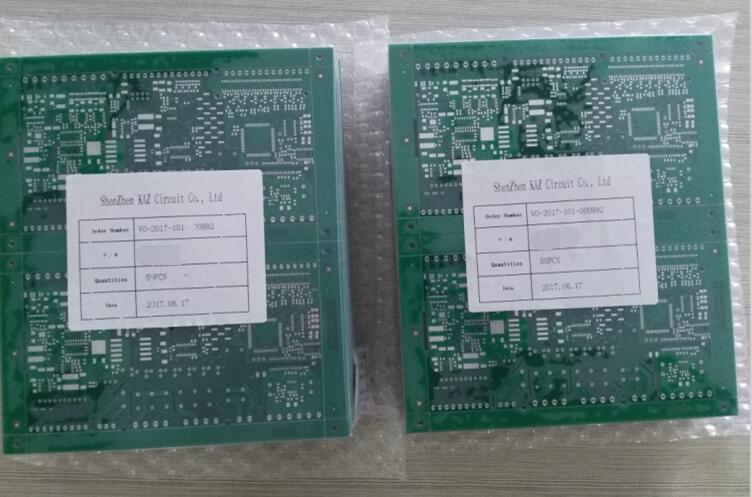

More photoes for 4 Layers FR4 PCB Circuit Board Green Soldmask With Blind Via

About Us

Manufacturing Capacity - Rigid PCB

Item	Production Capacity
Type of Products	Single Sided, double sided & multilayer
Max Board Size	Single & Double Sided: 600*1500mm
Max Board Size	Multilayer: 600*1,200 mm
Surface Finish	HASL, ENIG, OSP, Immersion Silver, Golden Finger, etc.
Layers	1~20
Boad Thickness	0.4~4.0mm
Base Copper	18um(1/2oz), 35um (1oz), 70um (2oz), 105um (3oz), 150um (4oz), 300um (8oz)
Board Material	FR-4, Aluminum base, Polymide, copper base, ceramic base
Min Drilling Hole Size	0.1mm
Min Line Width & Space	0.075mm
Platting Gold	Nickle Plating Thickness 2.5~5um, gold thickness 0.05~0.1um
Tin Spraying	Tin thickness 2.5~5um
Milling Space	wire & edge: 0.15mm, hole & edge: 0.2mm, Contour Tolerance: +/-0.1mm
Socket Chamfer	Angle: 30°/45°/60° Depth: 1~3mm
V-Cut	Angle: 30°/45°/60° Depth: 1/3 of board thickness, min aise: 80*80mm
On-Off Test	Max Testing Area: 400*1,200mm
	Max Testing Point: 12,000 points
	Max Testing Voltage: 300V
	Max Insulation Resistance: 100mΩ
Impedance Control Tolerance	± 10%
Soldering Endurance	85℃~105℃ / 280℃~360℃

Manufacturing Equipments - Rigid PCB

Product Applicances

Product Show - Rigid PCB

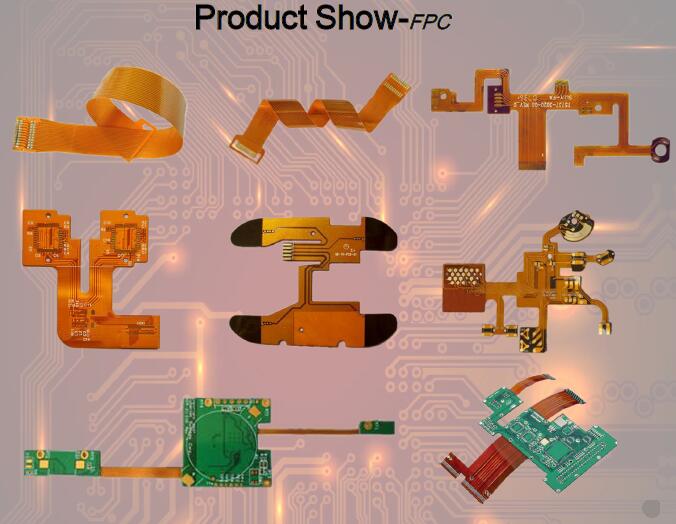

Product Show - FPC

Product Show - PCB Assemblies
