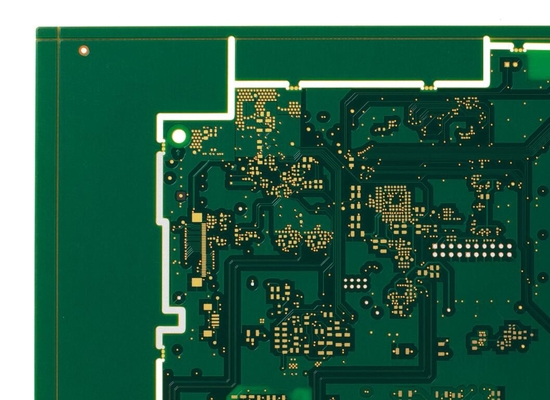

Rigid Flex HDI Printed Circuit Boards 10 Layers 1.6mm Board Thickness SMT PCB Assembly

Detail Specifications:

What KAZ Circuit can do for you:

• PCB manufacturing (prototype, small to medium, mass production)
• Components Sourcing
• PCB Assembly/SMT/DIP

To get a full quotation of the PCB/PCBA, pls provide the information as below:

• Gerber File, with detail specification of the PCB
• BOM List (Better with excel fomart)
• Photoes of the PCBA (If you have done this PCBA before)

Company Informaiton:

KAZ Circuit is a professional PCB manufacturer from China since 2007, also provide PCB Assembly service for our customers. Now with about 300 employees. Certified with ISO9001,TS16949, UL, RoHS. We are confident to provide you quality products with factory-directed price within the fastest delivery time!

Manufacturer Capacity:

HDI printed circuit boards, also known as microvia or μvia PCBs, are an advanced PCB technology that enable high-density interconnections and miniaturized electronic components.

Key features and functions of HDI printed circuit boards include:

Miniaturization and increased density:
HDI PCBs feature smaller, more closely spaced vias and vias, allowing for higher interconnect density.
This makes it possible to design more compact, space-saving electronic devices and components.

Microvias and Stacked Vias:
HDI PCBs use microvias, which are smaller, laser-drilled holes that are used to connect different layers of the PCB.
Stacked vias, where multiple vias are stacked vertically, can further increase interconnect density.

Multi-layer structure:
HDI PCBs can have a higher layer count than traditional PCBs, typically 4 to 10 or more.
The increased number of layers allows for more complex routing and more connections between components.

Advanced materials and processes:
HDI PCBs often use specialized materials such as thin copper foil, high-performance laminates, and advanced plating techniques.
These materials and processes enable the creation of smaller, more reliable, higher-performance interconnects.

Improved electrical properties:
The reduced trace widths, shorter signal paths, and tighter tolerances of HDI PCBs help improve electrical performance, including improved signal integrity, reduced crosstalk, and faster data transmission.

Reliability & Manufacturability:
HDI PCBs are designed for high reliability, with features like improved thermal management and enhanced mechanical stability.
Manufacturing processes for HDI PCBs, such as laser drilling and advanced plating techniques, require specialized equipment and expertise.

HDI printed circuit board applications include:

Smartphones, Tablets, and Other Mobile Devices

Wearable Electronics and IoT (Internet of Things) Devices

Automotive electronics and advanced driver assistance systems (ADAS)

High speed computing and telecommunications equipment

Military and aerospace electronic equipment

Medical devices and instruments

The continued demand for miniaturization, enhanced functionality, and higher performance in a variety of electronic products and systems has driven the adoption of HDI PCB technology.

More photoes

In the year of 2024, SHENZHEN KAIZUO ELECTRONIC TECHNOLOGY CO., LTD (KAZ CIRCUIT) has joined Kingsum group (www.kingsumpcba.com), to seek for a larger market share from PCB manufacturing, component sourcing, pcb assembly, and box build assembly with better price and lead time.

Founded in 2007, KaiZuo Electronic (hereinafter referred to as KAZ) is a professional & high quality provider of Electronic Manufacturer Service (EMS) from China. With about 300 experienced employees, KAZ can provide customers with one stop services including PCB manufacturing, Components Sourcing, PCB Assembly, Cable Assembly, Box Building, IC Programming, Functional and Aging Testing. Certified with ISO9001, UL, RoHS, TS16949.

Equipped with 5 high-speed SMT, automatic printing machine (DSP1008), MIRAE MX200/MIRAE MX400 high-speed production line, YAMAHA equipment (YS24/YG12F...), reflow soldering (NS-1000), AOI testing equipment (JTA-320-M), X-Ray inspection equipment (Nikon AX7200), 2 DIP production lines and Nitto wave soldering.

After focusing on the electronic manufacturer services for 13+ years, KAZ has established long-term cooperated & satisfied customers all over the world. Mainly from North America, European, Asia and Australia. Application fields including industrial control, IT/Networking, IoT, security, automotive, power electronics, consumer electronics, lighting, etc.
