    Heavy Copper Green Soldmask White Silkscreen PCB Assembly PCBA

    Ask Lasest Price
    Brand Name : KAZ
    Model Number : KAZA-007
    Certification : UL&ROHS
    Price : 0.1-20 USD / Unit
    Payment Terms : T/T, Western Union, MoneyGram, L/C, D/A
    Supply Ability : 2000 m2 / Month
    Delivery Time : 10 ~ 20 wprking days
    • Product Details
    • Company Profile

    Heavy Copper Green Soldmask White Silkscreen PCB Assembly PCBA

    Heavy Copper Green Soldmask White Silkscreen PCB Assembly PCBA


    1. Features of PCBA
    Material: FR4, high Tg
    RoHS Directive-compliant
    Board thickness: 0.4-5.0 mm +/-10%
    Layer count: 1-22 layers
    Copper weight: 0.5-5oz
    Min finish hole side: 8 mils
    Laser drill: 4 mils
    Min trace width/space: 4/4 mils (production), 3/3 mils (sample run)
    Solder mask: green, blue, white, black, blue and yellow
    Legend: white, black and yellow
    Max board dimensions: 18*2 inches
    Finish type options: gold, silver, tin, hard gold, HASL, LF HASL
    Inspection standard: ipc-A-600H/IPC-6012B, class 2/3
    Electronic test: 100%
    Report: final inspection, E-test, solder ability test, micro section
    Certifications: UL, SGS, RoHS Directive-compliant , ISO 9001:2008, ISO/TS16949:2009


    2. Bluetooth PCBA Technical capability


    SMTPosition accuracy:20 um
    Components size:0.4×0.2mm(01005) —130×79mm,Flip-CHIP,QFP,BGA,POP
    Max. component height::25mm
    Max. PCB size:680×500mm
    Min. PCB size:no limited
    PCB thickness:0.3 to 6mm
    PCB weight:3KG
    Wave-SolderMax. PCB width:450mm
    Min. PCB width: no limited
    Component height:Top 120mm/Bot 15mm
    Sweat-SolderMetal type :part, whole, inlay, sidestep
    Metal material:Copper , Aluminum
    Surface Finish:plating Au, plating sliver , plating Sn
    Air bladder rate:less than20%
    Press-fitPress range:0-50KN
    Max. PCB size:800X600mm
    TestingICT,Probe flying,burn-in,function test,temperature cycling

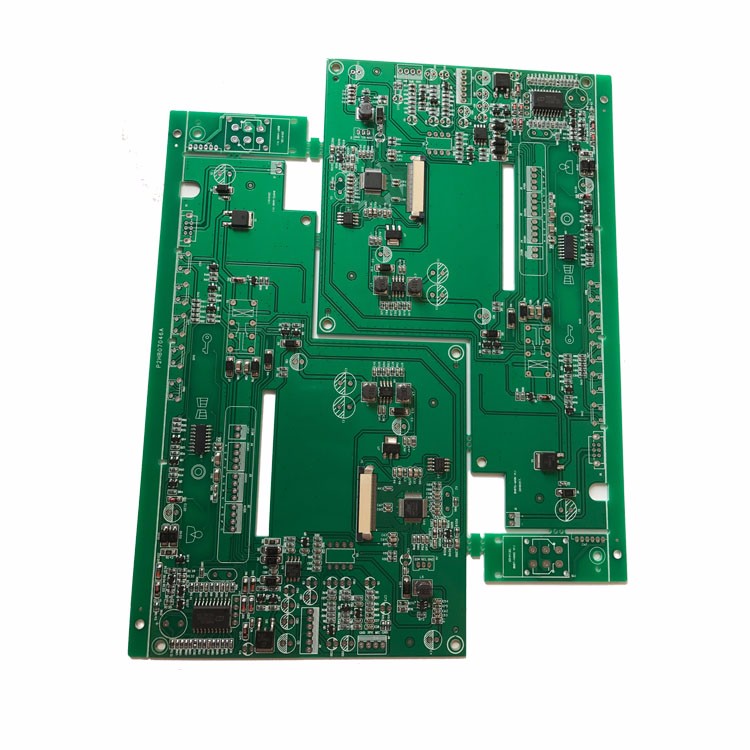

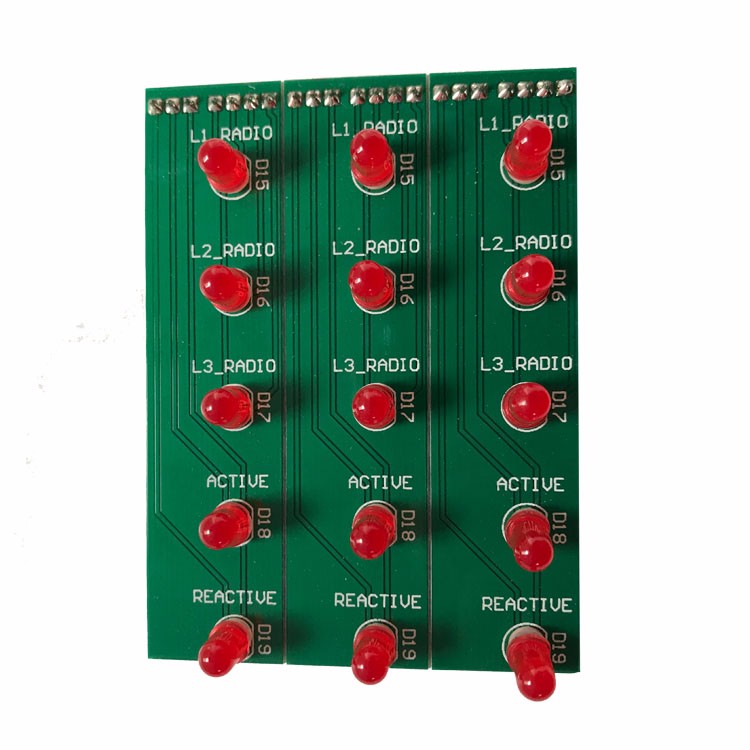

    2. PCBA Pictures





    Quality Heavy Copper Green Soldmask White Silkscreen PCB Assembly PCBA for sale
